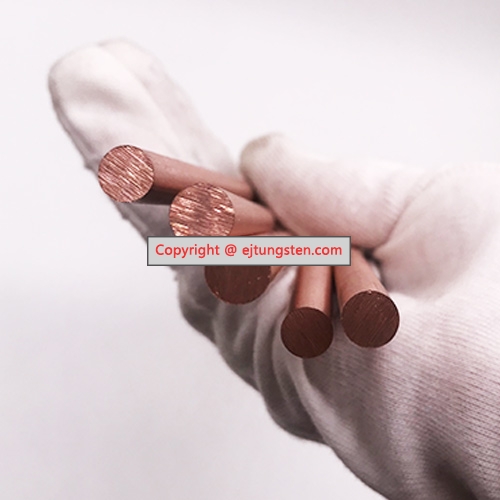

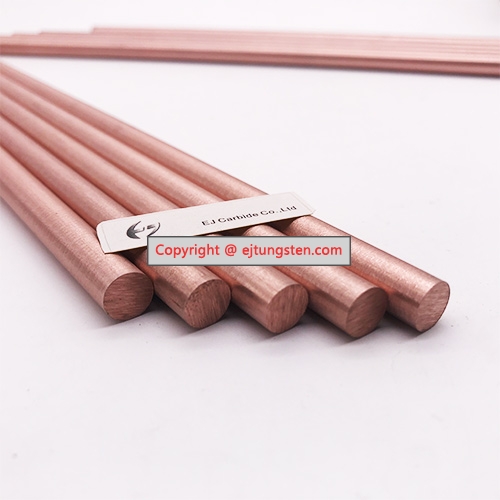

Cu 50% W 50% Tungsten Copper rods 8*300mm
50% Cu is the standard copper content limit of tungsten copper alloy. On tungsten copper rods, the copper content is standing for electric conductivity, while tungsten content is standing for the wear-resistance,
If your project requests the best conductivity and hoping the parts are working longer, the Cu 50% W 50% Tungsten Copper is the best choice for you.

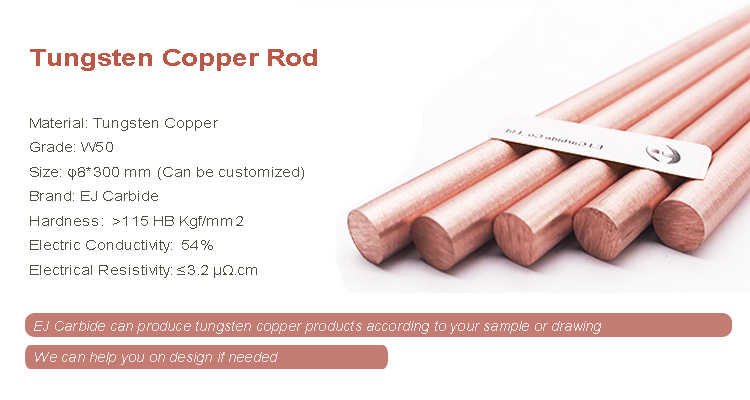

Material: Tungsten Copper
Grade: W50
Material content: Tungsten 50%+ Copper 50%
Size: φ8*300 mm (Can be customized)
Brand: EJ Carbide
Hardness: >115 HB Kgf/mm2
Electric Conductivity: 54%
Electrical Resistivity: ≤3.2 μΩ.cm
The other grades of tungsten copper products are available, Below is our regular grades for tungsten copper products, it is also the grades ranges on the whole markets:
Tungsten copper alloy electrode material grade
| Grade |
Chemical component |
Density
g/cm³ ≥ |
Hardness
HB Kgf/mm2 ≥ |
electrical resistivity
μΩ.cm ≤ |
electric conductivity
%IACS≥ |
Flexure strength
MPa≥ |
| W50 |
Cu50% W50% |
11.85 |
115 |
3.2 |
54 |
-- |
| W55 |
Cu45% W55% |
12.30 |
125 |
3.5 |
49 |
-- |
| W60 |
Cu40% W60% |
12.75 |
140 |
3.7 |
47 |
-- |
| W65 |
Cu35% W65% |
13.30 |
155 |
3.9 |
44 |
-- |
| W70 |
Cu30% W70% |
13.80 |
175 |
4.1 |
42 |
790 |
| W75 |
Cu25% W75% |
14.50 |
195 |
4.5 |
38 |
885 |
| W80 |
Cu20% W80% |
15.15 |
220 |
5.0 |
34 |
980 |
| W85 |
Cu15% W85% |
15.90 |
240 |
5.7 |
30 |
1080 |
| W90 |
Cu10% W90% |
16.75 |
260 |
6.5 |
27 |
1160 |
You can check the form and find the most suitable grade.
For more information about Cu 50% W 50% Tungsten Copper rods 8*300mm, please feel free to contact us at +86 18673339477 or sales@ejtungsten.com
