【Product Overview】

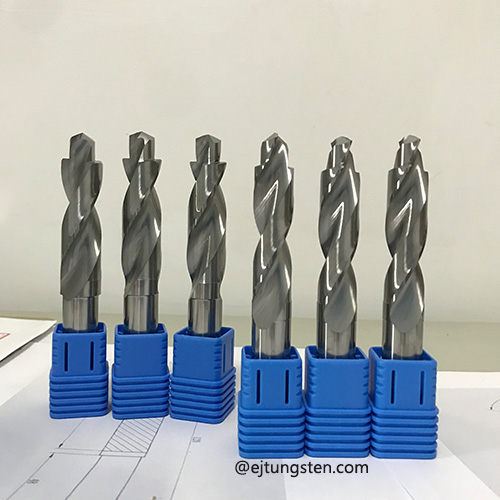

This tungsten carbide step drill is designed for high-efficiency drilling in aluminum and other non-ferrous metals. Manufactured as a custom solution, it enables operators to drill multiple diameters in a single pass, reducing cycle times and tool changes.
Made from solid tungsten carbide, this step drill delivers superior hardness, wear resistance, and heat tolerance compared to HSS or cobalt tools. It is currently supplied uncoated to minimize built-up edge (BUE) when machining aluminum alloys, with full coating options available for other materials.
【Product Specifications】

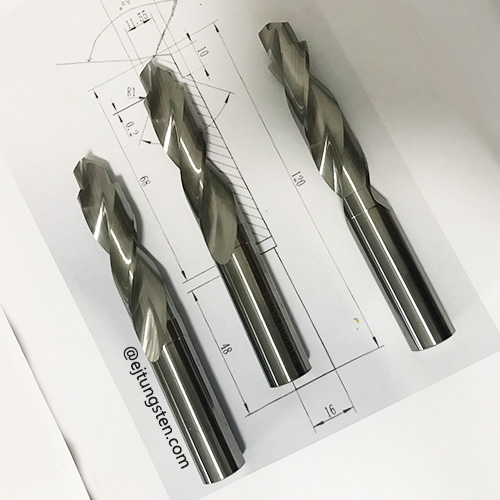

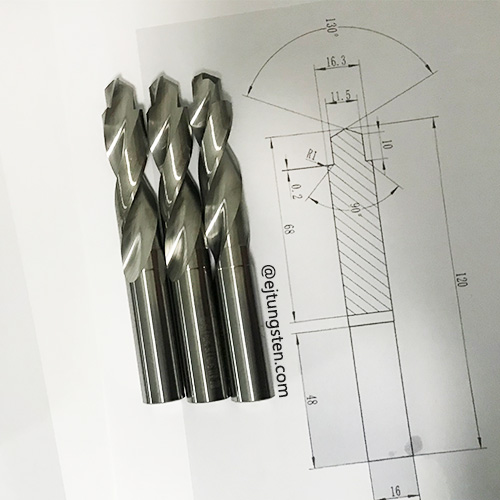

| Parameter | Measurement |
|---|---|
| Step Diameter | 11.5 mm |
| Cutting Diameter | 16.3 mm |
| Flute Length | 68 mm |
| Shank Diameter | 16 mm |
| Shank Length | 48 mm |
| Overall Length | 120 mm |
| Material | Solid Tungsten Carbide |
| Coating | Uncoated (optional coatings available) |
| Application | Aluminum & non-ferrous metals |
【Key Benefits】
Step drilling in one operation – Drill graduated holes without changing tools
Solid carbide construction – Extended tool life in abrasive non-ferrous materials
Custom-engineered geometry – Optimized for aluminum, reducing chip welding and friction
Uncoated design – Ideal for soft, sticky alloys where coatings may cause buildup
Fully customizable – Any diameter, length, step configuration, or coating
【Custom Manufacturing – Your Design, Our Production】
This product was made to a specific customer’s drawing. However, we specialize in custom carbide step drills based on your samples or CAD drawings.
We can customize:
Step diameters and counts
Flute lengths and helix angles
Shank configurations
Coatings (TiAlN, AlTiN, ZrN, DLC, diamond, etc.)
Coolant-through options
【Applications】
Aluminum alloy drilling
Copper, brass, and bronze
Non-ferrous metal processing
Automotive and aerospace components
General fabrication and prototyping
Send your drawings or sample requirements for a quick quote. Our technical team will review your requirements and provide a competitive quote within 24 hours.
sales@ejtungsten.com or +8618673339477(same for whats app and we chat)
