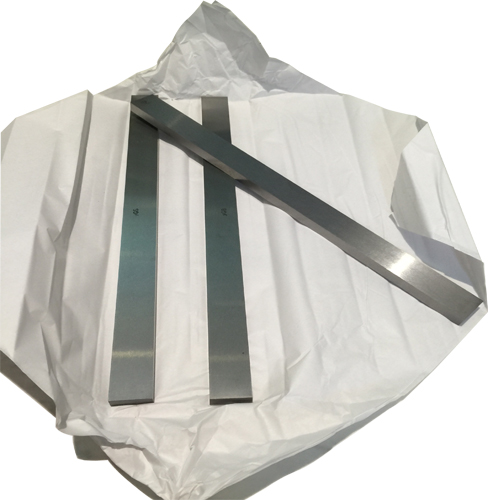

Tungsten carbide Strip is widely known as one kind of carbide cutting tools. Tungsten carbide strip is available for different grinding geometric parameters and suitable for both cutting materials and nonmetal materials, also it can be applied to conventional, carbide inserts, semi-automatic lathe, automatic lathe and planning machine to work grooves and operate cutting, etc.

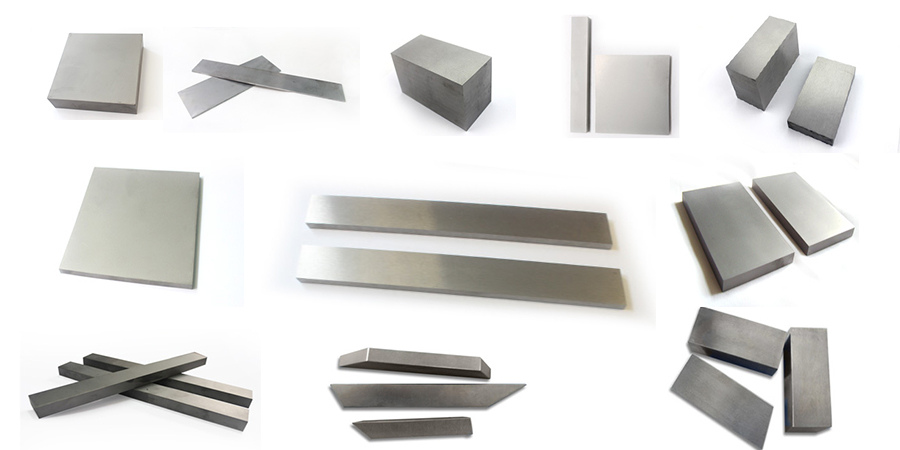

We have tungsten carbide strips in different size and specification in stock.
Tungsten Carbide Strip Features
Due to its excellent properties, our tungsten carbide strip is widely used in industry:
1. Our tungsten carbide strips are of hardness between HRA85 to HRA 92. Maybe you may not have a clear idea about the data, but let's compare it with stainless steel whose hardness is HRA 60. That is why our tungsten carbide can cut the stainless steel.

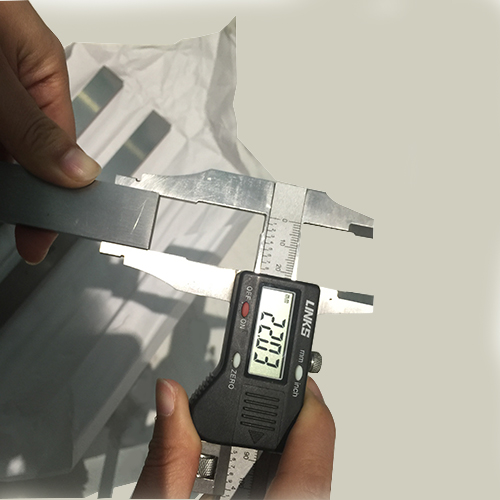

2. Our tungsten carbide strip tolerance can be controlled to +/-0.01mm.
3. Chemical stability, It is not easy to be Oxygenated or rust in an ordinary situation.
4. Anti-deformation & deflection
Because of its wear resistance and hardness between HRA85 to HRA 92, the tungsten carbide strip is ideally suited for wear parts, other machine parts, and dies that are subject to severe service conditions, such as high temperatures, corrosion, and abrasion. In recent years, tungsten carbide has emerged as a superior alternative to steel in many industrial applications.
Because of its long wear qualities, tungsten carbide strip translates into significant cost savings for OEMs, including smaller parts inventories, less downtime to replace worn components, and greater productivity.
Tungsten Carbide Strip Applications
Tungsten carbide strips further processed into cutters are widely used in ceramics, printing machinery, forestry, rubber, plastics, light textile industry, cigarette machinery, packaging materials, cable, shipbuilding, metallurgical machinery, and electronics, leather industries, such as circular carbide blade, plastic granulator rollerblade, circular blade for asbestos gas cutting machine slitting blades, sheet metal processing blades, etc. standards, and non-standard mechanical blade.
Tungsten carbide Strip is used mainly in cutting metals, wood, and paper fields, therefore strip requires high quality to acquire a longer life circle and cutting speed.
The tungsten carbide strip is suitable for the processing of chilled cast iron, and alloy steel. Tungsten carbide strip is also used for the precise processing of cast iron and the production of wear-resistant parts.
With good bending strength and wear resistance, not only is tungsten carbide strip applied in slow rough turning, heat-resisting alloy milling, and the semi-finishing of titanium alloy, stainless steel, and low-alloy steel, but it is also suitable for the processing of glass steel and the production of PCB micro-drilling, etc.
For more information about tungsten carbide strips, please feel free to contact us at +86 186 7333 9477 or
sales@ejtungsten.com
Tungsten carbide strip Advantages
1. We have a few senior engineers who have specializ in the tungsten carbide field for many decades;
2. Recommended grade: YG6(K10) YG6X YG8(K20) YG15(K30), we can research and develop a more suitable formula according to use conditions and processing characteristics for the client.
3. For your non-standard parts, we have a strong ability to make the mold by ourselves and produce them per your requirements.
4. We have a strict quality control and assurance system to guarantee consistent quality.
Tungsten carbide strip Grades
We have many different grades of tungsten carbide strips for different applications.
Mainly including tungsten carbide + cobalt series and tungsten carbide + nickel series. below we show you some different grades to help you choose the most suitable grades:
1. Tungsten carbide + cobalt strips grade form:
ISO
Grade |
Grade |
Co % |
Grain Size |
|
| Density |
Hardness |
TRS ≥ |
| g/cm3 |
≥HRA |
N/MM2 |
| K10 |
YG6 |
6 |
medium |
14.7-15.1 |
89.5 |
1700 |
| K10 |
YG6X |
6 |
fine |
91.5 |
1600 |
| K20 |
YG8 |
8 |
medium |
14.6-14.9 |
88.5 |
1800 |
| K20 |
YG8X |
8 |
fine |
90 |
2200 |
| K20 |
YG8A |
8 |
fine/medium |
89 |
2500 |
| K20 |
YG8N |
8 |
medium |
88 |
1900 |
| K40 |
YG10 |
10 |
medium |
14.3-14.7 |
88 |
2200 |
| K40 |
YG13X |
13 |
fine |
14-14.5 |
88 |
2600 |
| K40 |
YG13 |
13 |
medium |
14-14.5 |
87 |
2700 |
| K40 |
YG15X |
15 |
fine |
13.8-14.2 |
88.5 |
3000 |
| K40 |
YG15 |
15 |
medium |
86.5 |
2800 |
| K40 |
YG18X |
18 |
fine |
13.6-14 |
86 |
2800 |
| K40 |
YG18 |
18 |
medium |
85 |
2700 |
| K40 |
YG20 |
20 |
fine |
13.4-13.8 |
85 |
2600 |
| K40 |
YG20C |
20 |
Coarse |
82 |
2500 |
| |
YG25 |
25 |
medium |
13-13.2 |
81.5 |
2400 |
| |
YG25C |
25 |
Coarse |
80 |
2200 |
2. Tungsten carbide + nickel strips grades form:
| Grade |
Ni % |
Grain Size |
Density |
Hardness |
TRS ≥ |
| g/cm3 |
≥HRA |
N/mm2 |
| YN7 |
7 |
medium |
14.5-14.9 |
90 |
1500 |
| YN9 |
9 |
medium |
14.1-14.6 |
88.5 |
1650 |
| YN13 |
13 |
medium |
14-14.4 |
87 |
2250 |
| YN15 |
15 |
medium |
13.8-14.2 |
86 |
2300 |
| YN18 |
18 |
medium |
13.6-14 |
84 |
2600 |
| YN20 |
20 |
medium |
13.4-13.8 |
82 |
2500 |
| YN25 |
25 |
medium |
12.6-13.2 |
79 |
2400 |
Why choose us for tungsten carbide strips?
