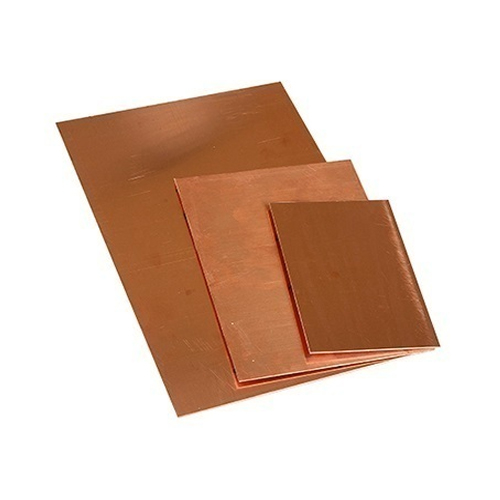

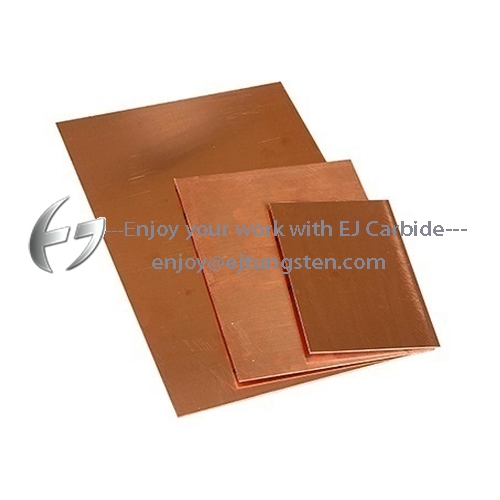

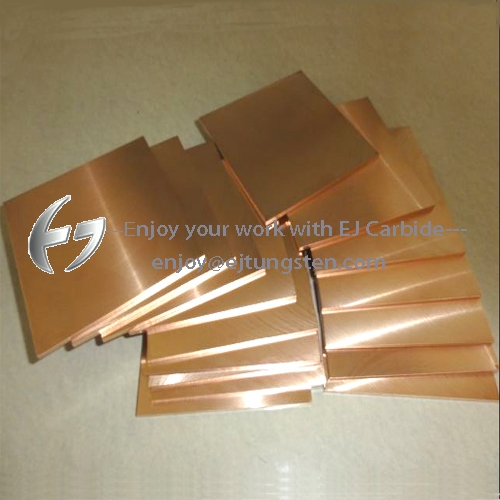

Tungsten copper alloy plates electrode
Tungsten copper alloy plates electrode Tungsten copper alloy plates electrode

Tungsten copper alloy plates electrode

Tungsten copper alloy plates electrode from EJ Carbide has good resistance to high temperature, bending strength and wear resistance.
INQUIRY
Description Grade
Tungsten copper alloy plates electrode from EJ Carbide has good resistance to high temperature, bending strength and wear resistance. Tungsten copper alloy plates electrode is mainly using as ERW (Electric resistance welding) electrode, EDM (Electrical discharge machining) electrode, High-pressure discharge tube electrode and so on.
EDM (Electrical discharge machining) electrode: When eclipse the tungsten steel mold and other high-temperature resistance high hardness alloy material mold, the common electrodes loss large and working slow.While the tungsten copper alloy plates electrode has a high corrosion rate and low loss rate, accurate electrode shape, excellent processing performance. All those can ensure that the accuracy of the workpiece is greatly improved.

Grade information of tungsten copper material
Tungsten copper alloy plates electrode grade
Grade Chemical compnent Density
g/cm³ ≥		   Hardness
HB Kgf/mm2 ≥		 electrical resistivity
        μΩ.cm ≤		 electric conductivity
        %IACS≥		 Flexure strength
      MPa≥
W50 Cu50%    W50% 11.85 115 3.2 54 --
W55 Cu45%    W55% 12.30 125 3.5 49 --
W60 Cu40%    W60% 12.75 140 3.7 47 --
W65 Cu35%    W65% 13.30 155 3.9 44 --
W70 Cu30%    W70% 13.80 175 4.1 42 790
W75 Cu25%    W75% 14.50 195 4.5 38 885
W80 Cu20%    W80% 15.15 220 5.0 34 980
W85 Cu15%    W85% 15.90 240 5.7 30 1080
W90 Cu10%    W90% 16.75 260 6.5 27 1160

For more information about Tungsten copper alloy plates electrode, please feel free to contact us at +86 0731 22995400 or sales@ejtungsten.com

Grade information of tungsten copper material
Tungsten copper material grade
Grade Chemical compnent Density
g/cm³ ≥		   Hardness
HB Kgf/mm2 ≥		 electrical resistivity
        μΩ.cm ≤		 electric conductivity
        %IACS≥		 Flexure strength
      MPa≥
W50 Cu50%    W50% 11.85 115 3.2 54 --
W55 Cu45%    W55% 12.30 125 3.5 49 --
W60 Cu40%    W60% 12.75 140 3.7 47 --
W65 Cu35%    W65% 13.30 155 3.9 44 --
W70 Cu30%    W70% 13.80 175 4.1 42 790
W75 Cu25%    W75% 14.50 195 4.5 38 885
W80 Cu20%    W80% 15.15 220 5.0 34 980
W85 Cu15%    W85% 15.90 240 5.7 30 1080
W90 Cu10%    W90% 16.75 260 6.5 27 1160
