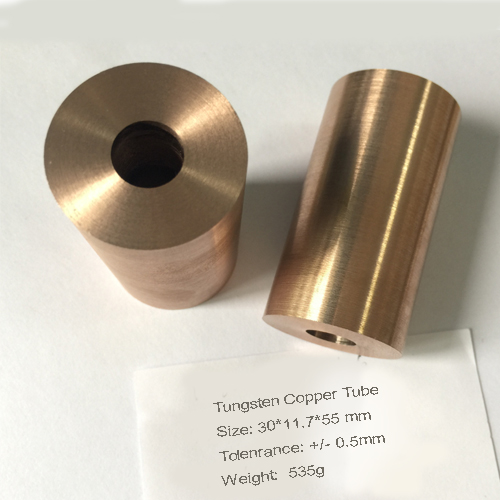

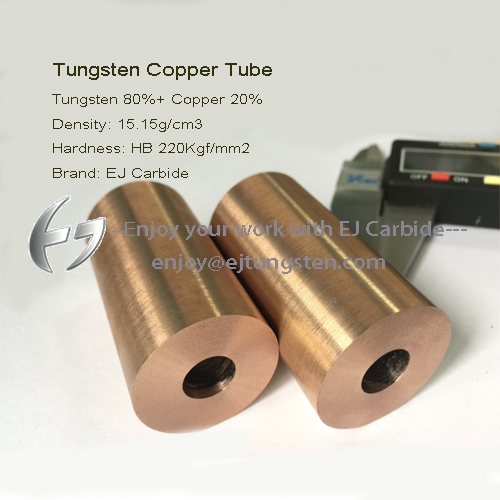

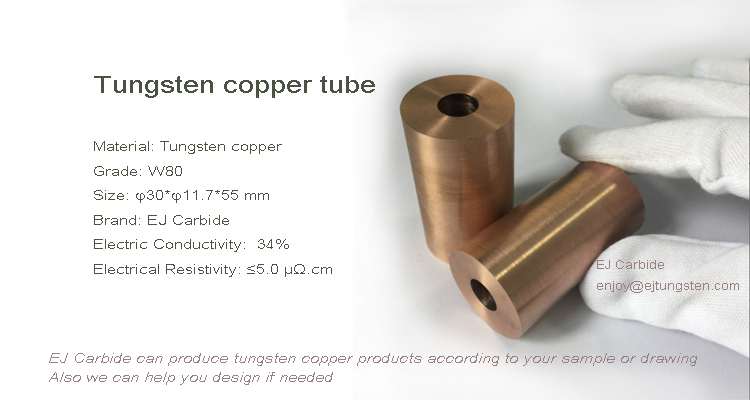

W80 tungsten copper tube
W80 tungsten copper tube W80 tungsten copper tube

W80 tungsten copper tube

W80Cu20 grade tungsten copper tube produced according to customer design
INQUIRY
Description Grade
We can produce tungsten copper tube in different grade according to your drawing or sample
tungsten copper tube
---Performance of tungsten copper material---
Tungsten copper material are component with tungsten and copper, Copper are occupy about 6%-50% of the total weight.
So tungsten copper material has the advantages of both tungsten and copper:
* keep its performance even in high temperature
* Resistant to arc ablation
* High strength
* High density
* Good thermal conductivity
* Good electrical conductivity
* Small thermal expansion
Because of tungsten copper material performance, its was widely used in machinery, electricity, electronics, metallurgy, aviation and so on

Using high-quality tungsten carbide powder, Using isostatic pressing, High temperature sintering tungsten skeleton and copper process. Production of high strength products, Product purity is high, Organization uniform, excellent performance. Tungsten copper material advantages: high temperature, arc erosion, high strength, specific gravity, good thermal conductivity, easy cutting, and has sweating cooling characteristics. Widely used in machinery, electricity, electronics, metallurgy, aviation.


---Grade information of tungsten copper material---
Tungsten copper material grade
Grade Chemical compnent Density
g/cm³ ≥		   Hardness
HB Kgf/mm2 ≥		 electrical resistivity
        μΩ.cm ≤		 electric conductivity
        %IACS≥		 Flexure strength
      MPa≥
W50 Cu50%    W50% 11.85 115 3.2 54 --
W55 Cu45%    W55% 12.30 125 3.5 49 --
W60 Cu40%    W60% 12.75 140 3.7 47 --
W65 Cu35%    W65% 13.30 155 3.9 44 --
W70 Cu30%    W70% 13.80 175 4.1 42 790
W75 Cu25%    W75% 14.50 195 4.5 38 885
W80 Cu20%    W80% 15.15 220 5.0 34 980
W85 Cu15%    W85% 15.90 240 5.7 30 1080
W90 Cu10%    W90% 16.75 260 6.5 27 1160

---Why choose EJ Carbide for tungsten copper products such as tungsten copper tube---
Why choose EJ Carbide for tungsten copper products such as tungsten copper tube

Grade information of tungsten copper material
Tungsten copper material grade
Grade Chemical compnent Density
g/cm³ ≥		   Hardness
HB Kgf/mm2 ≥		 electrical resistivity
        μΩ.cm ≤		 electric conductivity
        %IACS≥		 Flexure strength
      MPa≥
W50 Cu50%    W50% 11.85 115 3.2 54 --
W55 Cu45%    W55% 12.30 125 3.5 49 --
W60 Cu40%    W60% 12.75 140 3.7 47 --
W65 Cu35%    W65% 13.30 155 3.9 44 --
W70 Cu30%    W70% 13.80 175 4.1 42 790
W75 Cu25%    W75% 14.50 195 4.5 38 885
W80 Cu20%    W80% 15.15 220 5.0 34 980
W85 Cu15%    W85% 15.90 240 5.7 30 1080
W90 Cu10%    W90% 16.75 260 6.5 27 1160
