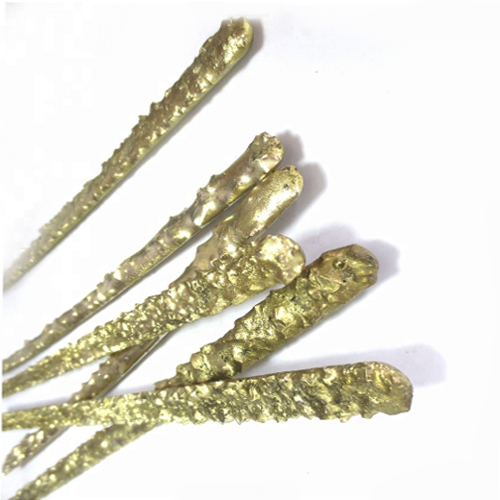

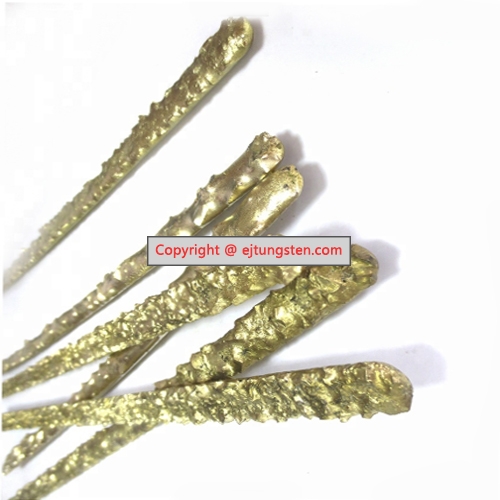

YD type electrode, tungsten carbide composite rod
Origin: Hunan, China
Branch: EJ Carbide
Model: YD
YD tungsten carbide composite rod Diameter: 10mm 12mm 18mm 20mm 22mm
Carbide composite rod Length: 280mm 350mm 400mm 450mm
Carbide composite rod Material: Tungsten carbide and copper, Nickel
Brazing rod Working Temperature: 1100 〜 1300 ° c
Application: welding
Item Name: YD cemented carbide composite brazing rod
Hardness: > 160HB
Strength: > 690Mpa
Particle size: 1mm, 3 3mm, 5 4mm, 6 5mm, 7 8mm, 10mm
Advantage: high ware-resistance.
HRA: > 90.0
| Grade |
Chemical Compositions (≤%) |
| Cu+Zn+Sn |
WC |
Co |
| Cu40 |
40±2 |
53-57 |
4.6-5.0 |
| Cu45 |
45±2 |
49-52 |
4.2-4.5 |
| Cu50 |
50±2 |
44-48 |
3.8-4.1 |
For more information about WC + copper, tungsten material YD cemented carbide composite brazing rod, please feel free to contact us at +86 0731 22995400 or sales@ejtungsten.com
